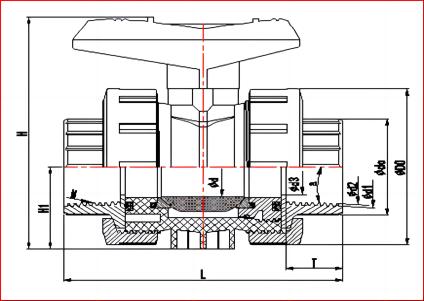

Size DN（De） | Dimension（mm） | |||||||||||
D0 | d0 | d1 | d2 | d3 | d | H1 | H | T | L | M | a° | |
15(20) | 51.50 | 30.43 | 20.95 | 18.63 | 16.00 | 15.50 | 26.30 | 82.80 | 17.00 | 95.50 | 1/2" | 3.58 |
20(25) | 59.00 | 36.30 | 26.44 | 24.12 | 20.60 | 20.50 | 30.60 | 92.80 | 19.50 | 109.10 | 3/4" | 3.58 |
25(32) | 70.00 | 44.61 | 33.25 | 30.29 | 26.00 | 26.00 | 39.10 | 109.20 | 23.00 | 122.60 | 1" | 3.58 |
32(40) | 85.40 | 53.87 | 41.91 | 38.95 | 33.00 | 33.00 | 44.20 | 131.80 | 27.00 | 147.30 | 1-1/4" | 3.58 |
40(50) | 98.90 | 61.12 | 47.80 | 44.85 | 39.00 | 39.00 | 52.20 | 143.20 | 32.00 | 158.80 | 1-1/2" | 3.58 |
50(63) | 122.20 | 73.83 | 59.61 | 56.66 | 51.00 | 51.00 | 71.30 | 175.70 | 38.50 | 182.80 | 2" | 3.58 |
65(75) | 158.60 | 87.71 | 75.18 | 74.23 | 64.00 | 64.00 | 82.80 | 231.50 | 44.50 | 234.00 | 2-1/2" | 3.58 |
80(90) | 192.10 | 106.81 | 87.88 | 84.93 | 81.00 | 81.00 | 99.30 | 260.60 | 52.00 | 255.00 | 3" | 3.58 |
100(110) | 223.60 | 133.46 | 113.03 | 110.07 | 99.00 | 99.00 | 115.20 | 292.10 | 62.00 | 297.00 | 4" | 3.58 |
