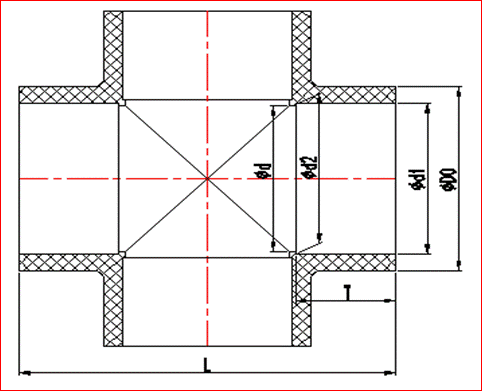

Size DN(De) | Dimension(mm) | |||||
D0 | d1 | d2 | d | T | L | |
15(20) | 26.30 | 20.30 | 19.95 | 18.00 | 16.20 | 55.40 |
20(25) | 31.80 | 25.30 | 24.95 | 21.00 | 18.70 | 65.40 |
25(32) | 39.90 | 32.30 | 31.90 | 28.00 | 22.20 | 79.40 |
32(40) | 49.50 | 40.35 | 39.90 | 36.00 | 26.20 | 95.40 |
40(50) | 61.50 | 50.35 | 49.90 | 46.00 | 31.20 | 115.40 |
50(63) | 77.40 | 63.40 | 62.90 | 59.00 | 37.70 | 141.00 |
65(75) | 91.20 | 75.40 | 74.90 | 70.90 | 43.70 | 165.00 |
80(90) | 107.60 | 90.50 | 89.90 | 85.90 | 51.20 | 194.50 |
100(110) | 127.00 | 110.60 | 109.90 | 103.90 | 61.20 | 234.50 |
De125 | 144.30 | 125.70 | 124.90 | 118.90 | 68.70 | 263.80 |
125(140) | 161.60 | 140.75 | 139.90 | 133.90 | 76.20 | 295.00 |
150(160) | 185.30 | 160.80 | 159.90 | 153.90 | 86.20 | 336.00 |
De200 | 230.00 | 201.00 | 199.90 | 193.90 | 106.20 | 414.00 |
200(225) | 259.40 | 226.20 | 224.90 | 216.90 | 118.70 | 465.00 |
De250 | 287.90 | 251.30 | 249.90 | 241.40 | 131.20 | 515.50 |
300(315) | 354.00 | 316.70 | 314.90 | 307.00 | 163.70 | 643.00 |
