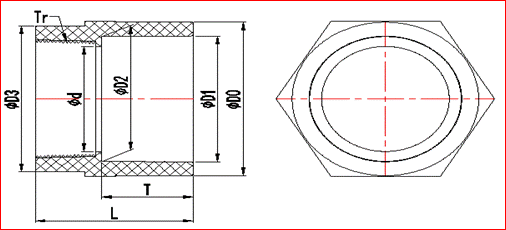

Size DN(De) | Dimension(mm) | |||||||
D0 | D1 | D2 | D3 | d | T | L | Tr | |
15(20) | 26.80 | 20.30 | 19.95 | 27.60 | 16.50 | 16.50 | 33.50 | 1/2" |
20(25) | 32.50 | 25.30 | 24.95 | 33.60 | 22.00 | 19.00 | 37.00 | 3/4" |
25(32) | 40.30 | 32.30 | 31.90 | 41.30 | 28.00 | 22.50 | 42.20 | 1" |
32(40) | 49.50 | 40.35 | 39.90 | 51.10 | 36.00 | 26.50 | 49.00 | 1-1/4" |
40(50) | 61.60 | 50.35 | 49.90 | 59.00 | 42.00 | 31.50 | 54.00 | 1-1/2" |
50(63) | 77.00 | 63.40 | 62.90 | 73.60 | 53.00 | 38.00 | 65.50 | 2" |
65(75) | 90.40 | 75.40 | 74.90 | 90.20 | 68.00 | 44.00 | 76.00 | 2-1/2" |
]80(90) | 106.50 | 90.50 | 89.90 | 107.60 | 80.00 | 51.50 | 86.50 | 3" |
100(110) | 126.90 | 110.60 | 109.90 | 129.40 | 104.50 | 61.50 | 103.00 | 4" |
