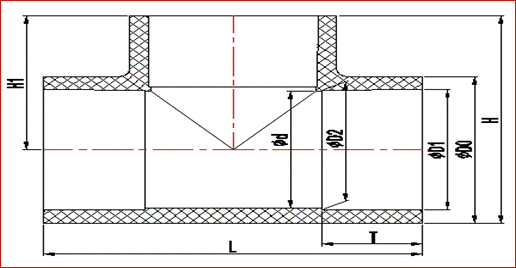

| Size DN(De) | Dimension(mm) | |||||||
| D0 | D1 | D2 | d | T | L | H1 | H | |
| 15(20) | 26.30 | 20.30 | 19.95 | 18.00 | 16.20 | 55.40 | 27.70 | 40.80 |
| 20(25) | 31.80 | 25.30 | 24.95 | 23.00 | 18.70 | 65.40 | 32.70 | 48.60 |
| 25(32) | 39.90 | 32.30 | 31.90 | 30.00 | 22.20 | 79.40 | 39.70 | 59.60 |
| 32(40) | 49.70 | 40.40 | 39.90 | 38.00 | 26.20 | 97.20 | 47.70 | 72.55 |
| 40(50) | 61.90 | 50.40 | 49.90 | 48.00 | 31.20 | 114.50 | 57.70 | 88.65 |
| 50(63) | 77.90 | 63.40 | 62.90 | 61.00 | 37.70 | 141.00 | 70.70 | 109.65 |
| 65(75) | 91.00 | 75.40 | 74.90 | 70.90 | 43.70 | 165.00 | 82.50 | 128.10 |
| 80(90) | 107.40 | 90.50 | 89.90 | 85.90 | 51.20 | 194.00 | 97.50 | 151.30 |
| 100(110) | 127.00 | 110.60 | 109.90 | 103.90 | 61.20 | 234.00 | 117.50 | 181.00 |
| De125 | 144.30 | 125.70 | 124.90 | 118.90 | 68.70 | 264.00 | 132.50 | 204.65 |
| 125(140) | 162.30 | 140.80 | 139.90 | 133.90 | 76.20 | 296.00 | 148.00 | 228.80 |
| 150(160) | 184.60 | 160.80 | 159.90 | 153.50 | 86.20 | 334.00 | 168.00 | 260.30 |
| De180 | 202.60 | 180.90 | 179.90 | 178.50 | 97.00 | 380.00 | 190.00 | 291.30 |
| De200 | 230.50 | 201.00 | 199.90 | 193.50 | 106.20 | 415.00 | 208.00 | 323.25 |
| 200(225) | 259.40 | 226.20 | 224.90 | 216.90 | 118.70 | 463.50 | 233.50 | 363.20 |
| De250 | 287.90 | 251.30 | 249.90 | 241.90 | 131.20 | 516.00 | 258.50 | 402.45 |
| 250(280) | 314.80 | 281.50 | 279.90 | 278.00 | 147.00 | 581.50 | 291.00 | 448.40 |
| 300(315) | 358.20 | 316.70 | 314.90 | 306.90 | 163.70 | 645.00 | 323.00 | 502.10 |
| 350(355) | 391.00 | 356.80 | 355.00 | 326.00 | 184.00 | 736.00 | 368.50 | 564.00 |
| 400(400) | 442.00 | 402.00 | 400.00 | 369.80 | 204.20 | 825.00 | 413.00 | 634.00 |
