Product Description

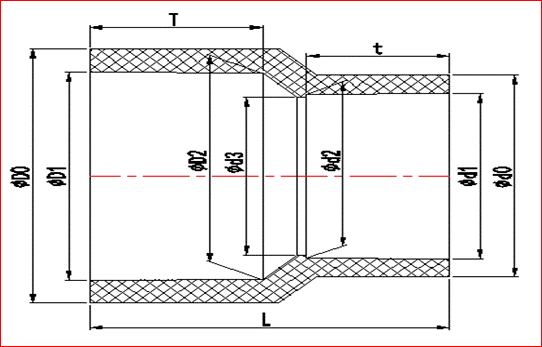

| Size DN(De) | Dimension(mm) | |||||||||
| D0 | D1 | D2 | d0 | d1 | d2 | d3 | t | T | L | |
| 25*20 | 30.05 | 25.24 | 24.95 | 24.85 | 20.24 | 19.96 | 19.00 | 17.00 | 19.50 | 41.80 |
| 32*20 | 37.40 | 32.25 | 31.95 | 24.85 | 20.24 | 19.96 | 19.00 | 17.00 | 23.00 | 48.50 |
| 32*25 | 37.40 | 32.25 | 31.95 | 30.00 | 25.24 | 24.95 | 24.00 | 19.50 | 23.00 | 48.50 |
| 40*20 | 46.70 | 40.28 | 39.95 | 26.10 | 20.24 | 19.96 | 19.00 | 17.00 | 27.00 | 55.10 |
| 40*25 | 46.70 | 40.28 | 39.95 | 31.30 | 25.24 | 24.95 | 24.00 | 19.50 | 27.00 | 55.50 |
| 40*32 | 46.80 | 40.28 | 39.95 | 38.70 | 32.25 | 31.95 | 31.00 | 23.00 | 27.00 | 55.20 |
| 50*20 | 56.60 | 50.33 | 49.94 | 24.85 | 20.24 | 19.96 | 19.00 | 17.00 | 32.00 | 66.50 |
| 50*25 | 56.80 | 50.33 | 49.94 | 30.00 | 32.25 | 31.95 | 24.00 | 23.00 | 32.00 | 66.50 |
| 50*32 | 56.60 | 50.33 | 49.94 | 37.50 | 40.28 | 39.95 | 31.00 | 27.00 | 32.00 | 66.50 |
| 50*40 | 57.20 | 50.33 | 49.94 | 47.10 | 40.28 | 39.95 | 39.00 | 27.00 | 32.00 | 66.20 |
| 63*25 | 71.70 | 63.34 | 62.93 | 31.20 | 25.24 | 24.95 | 24.00 | 19.50 | 38.50 | 79.50 |
| 63*32 | 72.10 | 63.34 | 62.93 | 38.30 | 32.25 | 31.95 | 31.00 | 23.00 | 38.50 | 79.50 |
| 63*40 | 71.50 | 63.34 | 62.93 | 47.00 | 40.28 | 39.95 | 39.00 | 27.00 | 38.50 | 78.80 |
| 63*50 | 83.30 | 63.34 | 62.93 | 57.40 | 50.33 | 49.94 | 49.00 | 32.00 | 38.50 | 80.00 |
| 75*32 | 83.30 | 75.35 | 74.93 | 38.00 | 32.25 | 31.95 | 31.00 | 23.00 | 44.50 | 92.50 |
| 75*40 | 83.30 | 75.35 | 74.93 | 46.20 | 40.28 | 39.95 | 39.00 | 27.00 | 44.50 | 92.50 |
| 75*50 | 83.30 | 75.35 | 74.93 | 56.50 | 50.33 | 49.94 | 49.00 | 32.00 | 44.50 | 92.30 |
| 75*63 | 83.30 | 75.35 | 74.93 | 70.30 | 63.34 | 62.93 | 62.00 | 38.50 | 44.50 | 91.80 |
| 90*40 | 99.20 | 90.38 | 89.93 | 46.00 | 40.28 | 39.95 | 39.00 | 27.00 | 52.00 | 106.50 |
| 90*50 | 99.20 | 90.38 | 89.93 | 56.30 | 50.33 | 49.94 | 49.00 | 32.00 | 52.00 | 107.50 |
| 90*63 | 99.20 | 90.38 | 89.93 | 71.00 | 63.34 | 62.93 | 62.00 | 38.50 | 52.00 | 109.00 |
| 90*75 | 99.20 | 90.38 | 89.93 | 84.00 | 75.35 | 74.93 | 73.50 | 44.50 | 52.00 | 107.50 |
| 110*50 | 120.80 | 110.42 | 109.92 | 56.70 | 50.33 | 49.94 | 49.00 | 32.00 | 62.00 | 125.75 |
| 110*63 | 120.80 | 110.42 | 109.92 | 70.55 | 63.34 | 62.93 | 62.00 | 38.50 | 62.00 | 125.00 |
| 110*75 | 120.80 | 110.42 | 109.92 | 84.20 | 75.35 | 74.93 | 73.50 | 44.50 | 62.00 | 128.60 |
| 110*90 | 120.80 | 110.42 | 109.92 | 100.30 | 90.38 | 89.93 | 88.50 | 52.00 | 62.00 | 125.78 |
| 125*63 | 135.20 | 125.52 | 124.93 | 69.50 | 63.34 | 62.93 | 62.00 | 38.50 | 69.50 | 142.50 |
| 125*75 | 135.20 | 125.52 | 124.93 | 82.70 | 75.35 | 74.93 | 73.50 | 44.50 | 69.50 | 142.50 |
| 125*90 | 137.30 | 125.52 | 124.93 | 99.50 | 90.38 | 89.93 | 88.50 | 52.00 | 69.50 | 142.50 |
| 125*110 | 137.00 | 125.52 | 124.93 | 121.60 | 110.42 | 109.92 | 108.00 | 62.00 | 69.50 | 142.50 |
| 140*90 | 151.50 | 140.58 | 139.88 | 99.30 | 90.38 | 89.93 | 88.50 | 52.00 | 77.00 | 151.50 |
| Size DN(De) | Dimension(mm) | |||||||||
| D0 | D1 | D2 | d0 | d1 | d2 | d3 | t | T | L | |
| 140*110 | 152.60 | 140.58 | 139.88 | 119.60 | 110.42 | 109.92 | 108.00 | 62.00 | 77.00 | 157.00 |
| 160*90 | 175.30 | 160.62 | 159.87 | 99.50 | 90.38 | 89.93 | 88.50 | 52.00 | 87.00 | 175.30 |
| 160*110 | 175.10 | 160.62 | 159.87 | 121.60 | 110.42 | 109.92 | 108.00 | 62.00 | 87.00 | 178.00 |
| 160*125 | 175.60 | 160.62 | 159.87 | 137.20 | 125.52 | 124.93 | 123.00 | 69.50 | 87.00 | 119.00 |
| 160*140 | 175.10 | 160.62 | 159.87 | 152.80 | 140.58 | 139.88 | 138.00 | 77.00 | 87.00 | 178.00 |
| 180*160 | 202.80 | 180.81 | 179.91 | 180.00 | 160.62 | 159.87 | 158.00 | 87.00 | 97.00 | 202.50 |
| 200*110 | 217.90 | 200.90 | 199.85 | 122.60 | 110.42 | 109.92 | 108.00 | 62.00 | 107.00 | 218.50 |
| 200*125 | 217.40 | 200.90 | 199.85 | 136.70 | 125.52 | 124.93 | 123.00 | 69.50 | 107.00 | 219.00 |
| 200*140 | 218.50 | 200.90 | 199.85 | 153.10 | 140.58 | 139.88 | 138.00 | 77.00 | 107.00 | 221.00 |
| 200*160 | 218.50 | 200.90 | 199.85 | 175.00 | 160.62 | 159.87 | 158.00 | 87.00 | 107.00 | 221.00 |
| 225*110 | 245.80 | 226.02 | 224.83 | 121.80 | 110.42 | 109.92 | 108.00 | 62.00 | 119.50 | 245.00 |
| 225*125 | 245.50 | 226.02 | 224.83 | 136.60 | 125.52 | 124.93 | 123.00 | 69.50 | 119.50 | 245.00 |
| 225*160 | 245.80 | 226.02 | 224.83 | 174.86 | 160.62 | 159.87 | 158.00 | 87.00 | 119.50 | 245.00 |
| 225*200 | 245.80 | 226.02 | 224.83 | 218.50 | 200.90 | 199.85 | 197.00 | 107.00 | 119.50 | 245.00 |
| 250*110 | 272.20 | 251.15 | 249.41 | 121.80 | 110.42 | 109.92 | 108.00 | 62.00 | 132.00 | 265.00 |
| 250*160 | 269.30 | 251.15 | 249.41 | 174.90 | 160.62 | 159.87 | 158.00 | 87.00 | 132.00 | 272.00 |
| 250*200 | 270.00 | 251.15 | 249.41 | 217.20 | 200.90 | 199.85 | 197.00 | 107.00 | 132.00 | 272.00 |
| 280*250 | 315.50 | 281.46 | 280.16 | 280.40 | 251.15 | 249.41 | 247.00 | 132.00 | 147.00 | 304.00 |
| 315*110 | 343.30 | 316.55 | 315.05 | 125.75 | 110.42 | 109.92 | 108.00 | 62.00 | 165.00 | 380.60 |
| 315*125 | 343.50 | 316.55 | 315.05 | 142.40 | 125.52 | 124.93 | 123.00 | 69.50 | 165.00 | 377.80 |
| 315*160 | 343.00 | 316.55 | 315.05 | 178.60 | 160.62 | 159.87 | 158.00 | 87.00 | 165.00 | 371.00 |
| 315*200 | 343.00 | 316.55 | 315.05 | 220.90 | 200.90 | 199.85 | 197.00 | 107.00 | 165.00 | 358.00 |
| 315*225 | 342.80 | 316.55 | 315.05 | 246.70 | 226.02 | 224.83 | 221.00 | 119.50 | 165.00 | 354.50 |
| 315*250 | 342.80 | 316.55 | 315.05 | 273.70 | 251.15 | 249.41 | 247.00 | 132.00 | 165.00 | 351.00 |
| 355*200 | 386.10 | 356.63 | 355.03 | 220.90 | 200.90 | 199.85 | 197.00 | 107.00 | 184.30 | 400.00 |
| 355*250 | 386.10 | 356.63 | 355.03 | 273.70 | 251.15 | 249.41 | 247.00 | 132.00 | 184.30 | 392.60 |
| 355*315 | 386.10 | 356.63 | 355.03 | 344.00 | 316.55 | 315.05 | 312.00 | 165.00 | 184.30 | 384.00 |
| 400*200 | 432.70 | 401.60 | 400.00 | 220.90 | 200.90 | 199.85 | 197.00 | 107.00 | 208.00 | 453.50 |
| 400*250 | 431.30 | 401.60 | 400.00 | 273.70 | 251.15 | 249.41 | 247.00 | 132.00 | 208.00 | 447.00 |
| 400*315 | 432.70 | 401.60 | 400.00 | 344.30 | 316.55 | 315.05 | 312.00 | 165.00 | 208.00 | 438.50 |
| 400*355 | 432.30 | 401.60 | 400.00 | 386.40 | 356.63 | 355.03 | 326.00 | 184.30 | 208.00 | 430.80 |
