Product Description

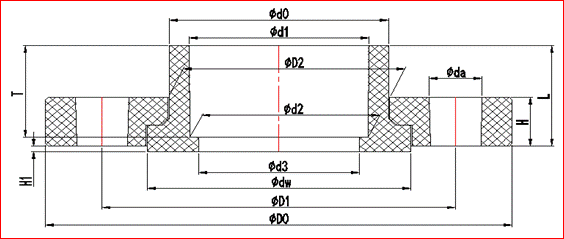

| Size(De) | Dimension(mm) | No of Screws | ||||||||||||
| D0 | D1 | D2 | d0 | d1 | d2 | d3 | dw | da | T | H1 | H | L | ||
| 50 | 148.00 | 110.00 | 60.10 | 56.60 | 50.33 | 49.94 | 49.00 | 82.00 | 18.00 | 32.00 | 7.60 | 14.50 | 35.00 | 4 |
| 63 | 165.60 | 125.00 | 75.20 | 69.60 | 63.34 | 62.93 | 62.00 | 93.70 | 18.00 | 38.50 | 8.00 | 15.60 | 42.30 | 4 |
| 75 | 185.00 | 145.00 | 87.00 | 82.60 | 75.35 | 74.93 | 73.00 | 103.80 | 18.00 | 44.50 | 8.30 | 16.10 | 47.80 | 4 |
| 90 | 194.90 | 160.00 | 105.00 | 99.30 | 90.38 | 89.93 | 88.50 | 128.40 | 18.00 | 52.00 | 10.50 | 18.20 | 54.50 | 8 |
| 110 | 219.00 | 180.00 | 132.00 | 120.30 | 110.42 | 109.92 | 108.00 | 150.00 | 18.00 | 62.00 | 14.50 | 20.00 | 66.10 | 8 |
| 125 | 248.00 | 210.00 | 145.00 | 136.60 | 125.52 | 124.93 | 123.00 | 163.80 | 18.00 | 69.50 | 15.50 | 19.30 | 74.10 | 8 |
| 140 | 248.50 | 210.00 | 152.50 | 151.60 | 140.58 | 139.88 | 138.00 | 167.80 | 18.00 | 77.00 | 12.50 | 21.00 | 83.00 | 8 |
| 160 | 284.00 | 240.00 | 186.50 | 177.60 | 160.62 | 159.87 | 158.00 | 260.50 | 22.00 | 87.00 | 19.50 | 26.00 | 91.20 | 8 |
| 200 | 340.00 | 295.00 | 230.50 | 220.50 | 200.90 | 199.85 | 197.00 | 258.50 | 22.00 | 107.00 | 20.00 | 29.80 | 113.00 | 8 |
| 225 | 340.00 | 295.00 | 253.00 | 245.50 | 226.02 | 224.83 | 221.00 | 266.70 | 22.00 | 119.50 | 21.50 | 32.00 | 123.00 | 8 |
| 250 | 393.00 | 350.00 | 277.00 | 275.00 | 251.15 | 249.41 | 247.00 | 303.00 | 22.00 | 132.00 | 22.50 | 34.00 | 138.00 | 12 |
| 280 | 397.00 | 350.00 | 308.00 | 305.40 | 281.46 | 280.16 | 278.00 | 324.50 | 22.00 | 147.00 | 22.00 | 35.00 | 162.00 | 12 |
| 315 | 445.00 | 400.00 | 353.50 | 346.30 | 316.55 | 315.05 | 312.00 | 378.50 | 22.00 | 165.00 | 30.00 | 40.00 | 157.70 | 12 |
| 355 | 510.00 | 460.00 | 390.00 | 386.60 | 356.63 | 355.03 | 326.00 | 413.50 | 24.00 | 184.30 | 32.00 | 40.00 | 193.50 | 16 |
| 400 | 570.00 | 515.00 | 438.00 | 432.00 | 401.60 | 400.00 | 398.50 | 460.00 | 24.00 | 208.00 | 40.00 | 43.80 | 200.00 | 16 |
| 450 | 620.00 | 565.00 | 488.50 | 486.00 | 451.94 | 450.05 | 447.00 | 518.00 | 27.00 | 233.00 | 38.00 | 45.00 | 245.00 | 20 |
| 500 | 670.00 | 620.00 | 541.00 | 536.50 | 502.80 | 500.60 | 596.00 | 573.00 | 27.00 | 257.40 | 38.00 | 50.00 | 268.00 | 20 |
