Product Description

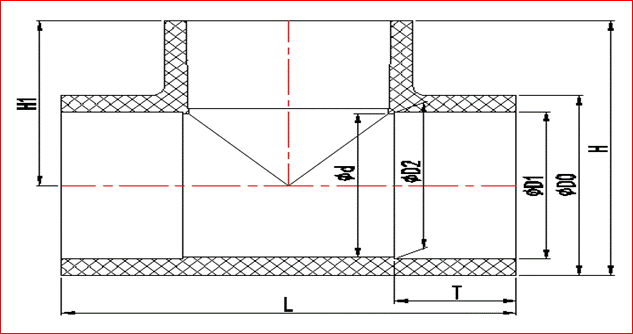

| Size(De) | Dimension（mm） | |||||||
| D0 | d1 | d2 | d | T | H1 | H | L | |
| 20 | 24.80 | 20.24 | 19.96 | 19.00 | 17.00 | 28.50 | 40.90 | 57.00 |
| 25 | 30.10 | 25.24 | 24.95 | 24.00 | 19.50 | 33.50 | 48.55 | 67.00 |
| 32 | 37.50 | 32.25 | 31.95 | 31.00 | 23.00 | 40.50 | 59.25 | 81.00 |
| 40 | 46.48 | 40.28 | 39.95 | 39.00 | 27.00 | 48.50 | 71.74 | 95.60 |
| 50 | 57.30 | 50.33 | 49.94 | 49.00 | 32.00 | 58.50 | 87.15 | 117.50 |
| 63 | 70.50 | 63.34 | 62.93 | 62.00 | 38.50 | 71.50 | 106.75 | 142.70 |
| 75 | 84.00 | 75.35 | 74.93 | 73.50 | 44.50 | 83.25 | 125.25 | 166.50 |
| 90 | 100.60 | 90.38 | 89.93 | 88.50 | 52.00 | 98.25 | 148.55 | 203.00 |
| 110 | 120.80 | 110.42 | 109.92 | 108.00 | 62.00 | 118.00 | 178.40 | 237.00 |
| 125 | 136.80 | 125.52 | 124.93 | 123.00 | 69.50 | 118.50 | 186.90 | 267.00 |
| 140 | 153.50 | 140.58 | 139.88 | 138.00 | 77.00 | 149.00 | 225.75 | 298.00 |
| 160 | 175.00 | 160.62 | 159.87 | 158.00 | 87.00 | 169.00 | 256.50 | 338.50 |
| 180 | 202.60 | 180.81 | 179.91 | 178.50 | 97.00 | 190.00 | 291.30 | 379.00 |
| 200 | 219.00 | 200.90 | 199.85 | 197.00 | 107.00 | 211.00 | 320.50 | 420.00 |
| 225 | 246.00 | 226.02 | 224.83 | 221.00 | 119.50 | 235.50 | 358.50 | 474.00 |
| 250 | 272.00 | 251.15 | 249.41 | 247.00 | 132.00 | 261.00 | 397.00 | 522.00 |
| 280 | 314.80 | 281.46 | 280.16 | 278.00 | 147.00 | 276.00 | 433.40 | 552.00 |
| 315 | 344.50 | 316.55 | 315.05 | 312.00 | 165.00 | 326.50 | 498.75 | 653.00 |
| 355 | 385.80 | 356.63 | 355.03 | 326.00 | 184.30 | 368.25 | 561.15 | 736.50 |
| 400 | 433.70 | 401.60 | 400.00 | 398.50 | 208.00 | 413.00 | 629.85 | 826.00 |
