Product Description

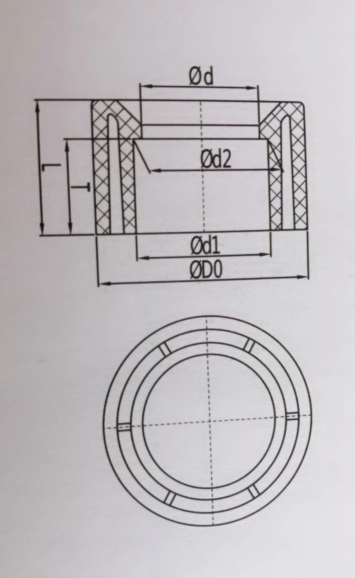

Size DN(De) | Dimension(mm) | |||||
D0 | d1 | d2 | d | T | L | |
20x15(25*20) | 25.32 | 20.30 | 19.95 | 16.00 | 17.00 | 19.20 |
25x15(32*20) | 32.00 | 20.30 | 19.95 | 16.00 | 17.00 | 22.20 |
25x20(32*25) | 40.00 | 25.30 | 24.95 | 21.00 | 19.50 | 22.20 |
32x15(40*20) | 40.00 | 20.30 | 19.95 | 16.00 | 17.00 | 26.30 |
32x20(40*25) | 40.00 | 25.30 | 24.95 | 21.00 | 19.50 | 26.30 |
32x25(40*32) | 40.00 | 32.30 | 31.90 | 27.50 | 23.00 | 26.30 |
40x15(50*20) | 50.00 | 20.30 | 19.95 | 16.00 | 17.00 | 31.20 |
40x20(50*25) | 50.00 | 25.30 | 24.95 | 21.00 | 19.50 | 31.20 |
40x25(50*32) | 50.00 | 32.30 | 31.90 | 27.50 | 23.00 | 31.20 |
40x32(50*40) | 50.00 | 40.35 | 39.90 | 35.00 | 27.00 | 31.20 |
50x15(63*20) | 63.00 | 20.30 | 19.95 | 16.00 | 17.00 | 38.10 |
50x20(63*25) | 63.00 | 25.30 | 24.95 | 21.00 | 19.50 | 38.10 |
50x25(63*32) | 63.00 | 32.30 | 31.90 | 27.50 | 23.00 | 38.10 |
50x32(63*40) | 63.00 | 40.35 | 39.90 | 35.00 | 27.00 | 38.10 |
50x40(63*50) | 63.00 | 50.35 | 49.90 | 45.00 | 32.00 | 38.10 |
65x20(75*25) | 75.00 | 25.30 | 24.95 | 21.00 | 19.50 | 44.10 |
65x25(75*32) | 75.00 | 32.30 | 31.90 | 27.50 | 23.00 | 44.10 |
65x32(75*40) | 75.00 | 40.35 | 39.90 | 35.00 | 27.00 | 44.10 |
65x40(75*50) | 75.00 | 50.35 | 49.90 | 45.00 | 32.00 | 44.10 |
65x50(75*63) | 75.00 | 63.40 | 62.90 | 56.00 | 38.50 | 44.10 |
80x25(90*32) | 90.00 | 32.30 | 31.90 | 27.50 | 23.00 | 51.00 |
80x32(90*40) | 90.00 | 40.35 | 39.90 | 35.00 | 27.00 | 51.00 |
80x40(90*50) | 90.00 | 50.35 | 49.90 | 45.00 | 32.00 | 51.00 |
80x50(90*63) | 90.00 | 63.40 | 62.90 | 56.00 | 38.50 | 51.00 |
80x65(90*75) | 90.00 | 75.40 | 74.90 | 67.00 | 44.50 | 51.00 |
100x40(110*50) | 110.00 | 50.35 | 49.90 | 45.00 | 32.00 | 61.00 |
100x50(110*63) | 110.00 | 63.40 | 62.90 | 56.00 | 38.50 | 61.00 |
100x65(110*75) | 110.00 | 75.40 | 74.90 | 67.00 | 44.50 | 61.00 |
100x80(110*90) | 110.00 | 90.50 | 89.90 | 80.50 | 52.00 | 61.00 |
De125*110 | 125.00 | 110.40 | 109.90 | 102.00 | 62.00 | 68.70 |
125x50(140*63) | 140.00 | 63.40 | 62.90 | 102.00 | 62.00 | 77.00 |
125x65(140*75) | 140.00 | 75.40 | 74.90 | 117.00 | 68.70 | 76.20 |
125x80(140*90) | 140.00 | 90.50 | 89.90 | 56.00 | 38.50 | 76.20 |
125x100(140*110) | 140.00 | 110.60 | 109.90 | 67.00 | 44.50 | 76.20 |
De140*125 | 140.00 | 125.70 | 124.90 | 80.50 | 52.00 | 76.20 |
150x50(160*63) | 160.00 | 63.40 | 62.90 | 96.00 | 62.00 | 86.00 |
150x65(160*75) | 160.00 | 75.40 | 74.90 | 130.00 | 77.00 | 86.00 |
150x80(160*90) | 160.00 | 90.50 | 89.90 | 56.00 | 38.50 | 86.00 |
150x100(160*110) | 160.00 | 110.60 | 109.80 | 67.00 | 44.50 | 86.00 |
150x125(160*140) | 160.00 | 125.70 | 139.90 | 80.50 | 52.00 | 86.00 |
De180*160 | 180.00 | 160.80 | 159.90 | 150.90 | 86.20 | 96.00 |
De200*160 | 200.00 | 160.80 | 159.90 | 151.50 | 85.50 | 106.50 |
De200*180 | 200.00 | 180.90 | 179.90 | 169.70 | 96.00 | 106.20 |
200x100(225*110) | 225.00 | 110.60 | 109.9 | 96.00 | 62.00 | 118.70 |
200x125(225*140) | 225.00 | 140.75 | 139.90 | 130.00 | 77.00 | 118.70 |
200x150(225*160) | 225.00 | 160.80 | 159.90 | 150.50 | 85.50 | 118.70 |
De225*200 | 225.00 | 201.00 | 199.90 | 188.80 | 106.20 | 118.70 |
De250*110 | 250.00 | 110.60 | 109.90 | 96.00 | 62.00 | 131.20 |
De250*160 | 250.00 | 160.80 | 159.90 | 150.50 | 85.50 | 131.20 |
De250*200 | 250.00 | 201.00 | 199.90 | 188.80 | 106.20 | 131.20 |
De250*225 | 250.00 | 226.20 | 224.90 | 210.80 | 118.70 | 131.20 |
250x200(280*225) | 280.00 | 226.20 | 224.90 | 208.80 | 118.70 | 146.20 |
300x100(315*110) | 315.00 | 110.60 | 109.90 | 96.00 | 62.00 | 163.70 |
300x150(315*160) | 315.00 | 160.80 | 159.90 | 150.50 | 85.50 | 163.70 |
De315*200 | 315.00 | 201.00 | 199.90 | 188.80 | 106.20 | 163.70 |
300x200(315*225) | 315.00 | 226.20 | 224.90 | 210.80 | 118.70 | 163.70 |
De315*250 | 315.00 | 251.15 | 249.90 | 239.00 | 131.20 | 163.70 |
300x250(315*280) | 315.00 | 281.50 | 279.90 | 263.50 | 146.20 | 163.70 |
De355*200 | 355.00 | 201.00 | 199.90 | 188.80 | 106.20 | 183.70 |
350x200(355*225) | 355.00 | 226.20 | 224.90 | 210.80 | 118.70 | 183.70 |
De355*250 | 355.00 | 251.15 | 249.90 | 239.00 | 131.20 | 183.70 |
350x300(355*315) | 355.00 | 316.55 | 314.90 | 305.00 | 163.70 | 183.70 |
De400*200 | 400.00 | 201.00 | 199.90 | 188.80 | 106.20 | 206.20 |
400x200(400*225) | 400.00 | 226.20 | 224.90 | 210.80 | 118.70 | 206.20 |
De400*250 | 400.00 | 251.15 | 249.90 | 239.00 | 131.20 | 206.20 |
400x300(400*315) | 400.00 | 316.60 | 314.90 | 305.00 | 163.70 | 206.20 |
400x300(400*355) | 400.00 | 356.70 | 345.90 | 345.00 | 183.70 | 206.20 |
