Product Description

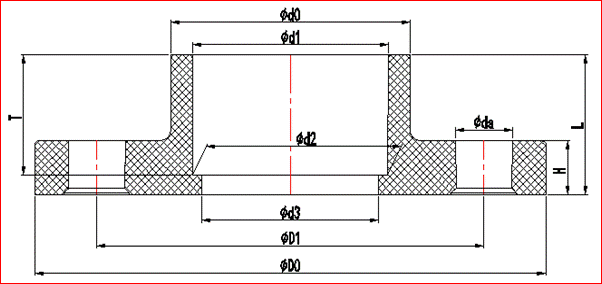

| Size (*"） | Dimension(mm) | No of Screws | |||||||||
| D0 | D1 | d0 | d1 | d2 | d3 | da | T | H | L | ||
| 1/2" | 89.00 | 60.30 | 29.54 | 21.54 | 21.23 | 17.00 | 16.00 | 23.22 | 13.00 | 27.72 | 4 |
| 3/4" | 89.00 | 69.85 | 35.27 | 26.87 | 26.57 | 22.50 | 16.00 | 26.40 | 14.00 | 30.90 | 4 |
| 1" | 108.00 | 79.38 | 43.66 | 33.66 | 33.27 | 29.00 | 16.00 | 29.57 | 15.00 | 34.10 | 4 |
| 1-1/4" | 117.00 | 88.90 | 53.02 | 42.42 | 42.04 | 38.00 | 16.00 | 32.75 | 15.00 | 38.75 | 4 |
| 1-1/2" | 127.00 | 98.43 | 59.86 | 48.56 | 48.11 | 43.00 | 16.00 | 35.93 | 17.00 | 41.95 | 4 |
| 2" | 152.00 | 120.65 | 72.23 | 60.63 | 60.17 | 55.00 | 19.00 | 39.10 | 19.00 | 46.10 | 4 |
| 2-1/2" | 178.00 | 139.70 | 88.00 | 73.38 | 72.85 | 67.50 | 19.00 | 45.45 | 20.00 | 53.00 | 4 |
| 3" | 191.00 | 152.40 | 105.30 | 89.31 | 88.70 | 83.00 | 19.00 | 48.63 | 20.50 | 57.15 | 4 |
| 4" | 229.00 | 190.50 | 132.00 | 114.76 | 114.07 | 106.00 | 19.00 | 58.15 | 21.00 | 66.65 | 8 |
| 5" | 254.00 | 216.00 | 162.00 | 141.81 | 141.04 | 133.00 | 22.00 | 67.68 | 23.50 | 77.50 | 8 |
| 6" | 284.00 | 241.30 | 190.85 | 168.83 | 168.00 | 160.00 | 22.00 | 77.20 | 26.50 | 88.20 | 8 |
| 8" | 343.00 | 298.45 | 245.84 | 219.84 | 218.69 | 208.00 | 22.00 | 102.60 | 27.00 | 113.60 | 8 |
