Product Description
| Size DN(De) | Dimension(mm) | No of Screws | ||||||||||||

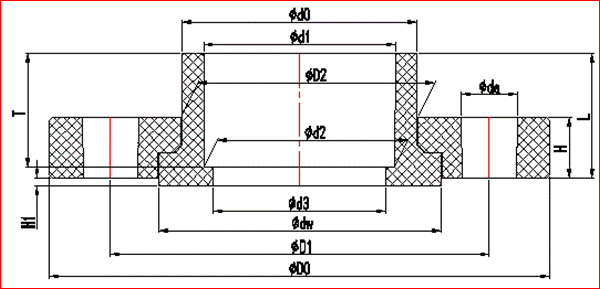

| D0 | D1 | D2 | d0 | d1 | d2 | d3 | dw | da | T | H1 | H | L | ||
| 2 | 152 | 121 | 74.1 | 73.1 | 60.63 | 60.17 | 52.5 | 88.5 | 19 | 39.1 | 2.5 | 20 | 42.6 | 4 |
| 2.5 | 178 | 140 | 89.4 | 88.4 | 73.38 | 72.85 | 65 | 108 | 19 | 45.5 | 2.5 | 23 | 49 | 4 |
| 3 | 191 | 152 | 106.3 | 105.3 | 89.31 | 88.7 | 80 | 124.8 | 19 | 48.63 | 2.5 | 26 | 53.13 | 4 |
| 4 | 229 | 191 | 133 | 132 | 114.76 | 114.07 | 102 | 152 | 19 | 58.15 | 2.5 | 28 | 62.65 | 8 |
| 5 | 254 | 216 | 162.9 | 161.9 | 141.81 | 141.04 | 122 | 181.5 | 22 | 68 | 2.5 | 30 | 73.5 | 8 |
| 6 | 284 | 241 | 192.5 | 191.5 | 168.83 | 168 | 150 | 209.5 | 22 | 77.2 | 3 | 32 | 83.2 | 8 |
| 8 | 343 | 298 | 247.9 | 246.9 | 219.84 | 218.69 | 193 | 264.9 | 22 | 102.6 | 3 | 36 | 108.6 | 8 |
| 10" | 410.00 | 362.00 | 309.80 | 305.80 | 273.81 | 272.67 | 262.50 | 327.37 | 24 | 128.00 | 3.00 | 42.00 | 138.00 | 12 |
| 12" | 482.60 | 432.00 | 366.60 | 362.60 | 324.60 | 323.47 | 313.00 | 384.60 | 24 | 153.40 | 3.00 | 44.00 | 166.00 | 12 |
| 14 | 534 | 476.3 | 402 | 399.2 | 356.6 | 355.5 | 388 | 426.6 | 28.6 | 183.5 | 32 | 45 | 161.5 | 12 |
| 16 | 598.5 | 540.8 | 456 | 451.6 | 407.6 | 406.36 | 342.5 | 482.4 | 28.6 | 208 | 35 | 50 | 185 | 16 |
